10 Micron Polyester Felt Liquid Filter Bag, Galvanized Steel Ring, Handle

Polyester Felt Liquid Filter Bag Information

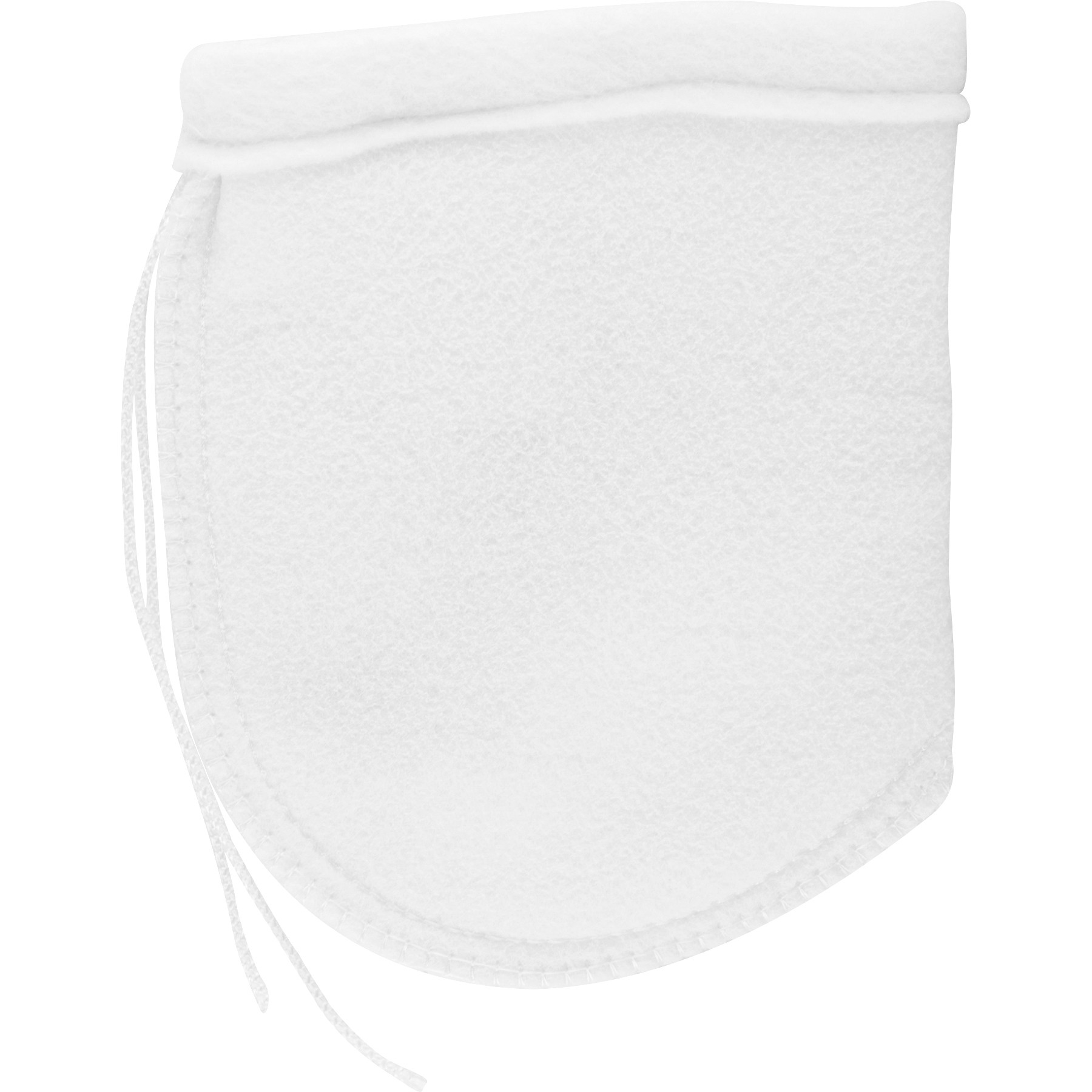

This is a 10 Micron size #3 (4.12" x 8") Polyester Felt liquid filter bag with a galvanized steel ring, designed to withstand higher solid loading, and are suitable for applications using vessel or open filtration systems. Industries that would need liquid filter bags consist of chemical, food, paper, petroleum, adhesives, paints and many others.

About Standard 10 Micron Galvanized Steel Ring Polyester Felt Felt Liquid Filter Bags

 Galvanized Steel Ring Polyester Felt Felt Liquid Filter Bags Key benefits

Micron ratings from 1 to 200

All industry standard & custom sizes available

Broad chemical compatibility

High flow/low pressure drop

Sewn or fully-welded construction

Choice of steel ring or plastic flange

Temperature ratings to 200°F (PO), 275°F (PE ), 425°F (HT) and 500°F (Teflon®)

Felt Bag Materials

Constructed using 100% synthetic fibers in polypropylene, polyester, Nomex® and Teflon®. The proper combination of fiber diameters, weights and thicknesses result in an economical depth filter media. To reduce fiber migration, Polypropylene bags are treated with a glazed finish, while Polyester and Nomex® bags are singed.

Polypropylene and Polyester materials meet FDA regulations for food contact under CFR21, Section 177.1520

Silicone-free construction

High dirt holding capacity

Ability to remove both solid and gelatinous particles

Low cost

Glazed/singed finish on Polypropylene & Polyester reduces fiber-shedding

10 Micron Galvanized Steel Ring Polyester Felt Felt Liquid Filter Bags Styles

Steel-ring bags have a galvanized steel ring (stainless steel optional) sewn into the top of the bag. They are supplied with sewn seams standard. Plastic flange bags have a specially-designed flange sewn to the top of the bag. They are supplied with sewn seams standard (fully-welded seams available upon request).

10 Micron Galvanized Steel Ring Polyester Felt Felt Liquid Filter Bags Welded Construction

Fully-welded bags are available in polypropylene and polyester felt for #1, #2, #3, #4 and #5 plastic flanges.

No needle holes, thus increasing efficiencies by preventing by-pass

Elimination of threads further reduces possibility of fiber-shedding
