Plastic products screen printing machine types

If you want to print plastic bottles, we need to use plastic screen printing machine for printing, then what screen printing machine can be plastic products printing it? Next we will introduce the type of plastic screen printing machine?

Plastic products screen printing machine types

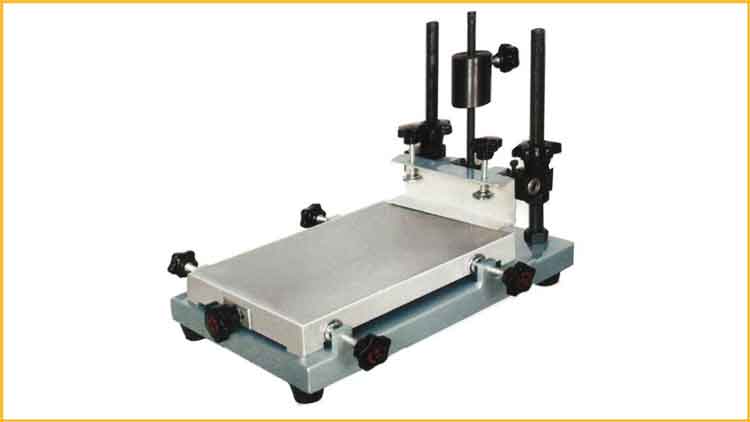

1. Manual flat screen printing machine

This is the easiest plastic screen printer, flatbed platform, hinged connection. Printing, pick and place the printing material, printing plate landing, scraping ink, back to the ink by hand, the biggest advantage is simple, economical, regardless of the type of material, as long as the flat shape can be printed.

2. Flat network platform lift screen printing machine

Printing plane screen printing plate does not move, the plane can be used for up and down the table can be raised and lowered, scraper horizontal direction for automatic ink scraping movement. Work balance printing, overprint accurate, can be used for multi-color overprint.

3. Flat screen roller automatic screen printing machine

This machine is composed of automatic feeding, printing mechanism, delivery mechanism and drying device. The screen printing plate used in the printing is horizontally mounted on the frame, scraping the table for the roll, the scraper can be moved up and down. Each print a color, move around the screen, the scraper moves up and down again. The machine from the paper to the printing can be continuous automatically, but also according to different substrates with a jog and semi-automatic devices. This screen printing machine overprint high precision, high production efficiency.

4 rotary screen printing machine platform

Screen printing plate was drum-shaped, scraper installed in the rotary screen printing plate, printing platform for the platform. Printing materials with roll material. Printing, the plane workbench does not move, Rotary rotary screen printing plate, the vertical downward scraper squeeze the ink through the rotary screen printing ink over the part of the horizontal movement of the printing material by Mexico, constitute the printing map Text, this screen printing machine can be arranged in units for multicolor overprint, suitable for plastic film, textile and other color printing.

5. Rotary screen cylinder screen printing machine

The machine screen printing plate, stamping table were cylindrical. Rotation of the two rollers when printing, rotary screen squeegee squeeze network to listen to ink, ink through the rotary screen version of the ink, so that printing ink by the composition of the printing. This screen printing machine speed, suitable for high-volume plastic screen printing.

6. Surface screen printing machine

Surface screen printing machine can be pided into manual, semi-automatic and automatic surface screen printing machine. Screen printing plate was flat, around the fan-shaped axis for horizontal movement. Printed material (cylindrical or conical) by the rotation of the roller support for synchronous rotation movement, under the pressure of the vertical scraper, the surface of the printing line was in contact with the screen printing plate, printing ink squeegee squeeze Press, leak printing to the surface of the print, the formation of graphic. Overprint at the same position after the colored, then rotate a certain angle (printing), and then the printing plate rotation and printing.

7. Conical side plastic screen printing machine

It is the same with the cylinder printing machine, mainly used for printing plastic containers, glasses and so on.
