MK-AQM240 one color hard caps screen printing machine

1. The machine is mainly used for printing various cambered surfaces and irregular caps made of hard materials such as plastics and metals. Such as safety helmet, motorcycle helmet, etc., It can effectively improve the printing quality, improve the printing efficiency.

2. The hard material cap has the characteristics of unbending and different shapes, so the positioning of the hat is very difficult, resulting in inaccurate printing position. The printing surface is cambered surface with various bending degrees, irregular bending, diverse cap shapes and other special characteristics.

The difficulty in fixing the cap and fitting the camber screen plate for different cap bodies in printing results in the very low printing efficiency of such caps and the difficulty in guaranteeing the printing quality.

1. Positioning of the bottom of the hat: the bottom of the hat shall be positioned in an all-round way by the shaping resin to ensure the stability of the bottom of the hat; Any material, any shape of the hat can be accurately positioned;

2. Positioning of the lower part of the hat: the positioning of the bottom is completed. The secondary four-point positioning and locking are adopted in the lower part of the hat to ensure that the hat will not move after it is placed in the positioning position of the printing press. At the same time to ensure that the hat is easy to take off; Easy to put the hat, the hat does not deviate.

3. Stainless steel cambered plate can be bend a little from left to right in accordance with the arc of the hat ; To meet the radian requirements of the cap printing surface, so as to ensure that the screen plate and printing surface arc as parallel as possible, to ensure accurate printing positioning and the quality of printing.

Basic functions of the machine

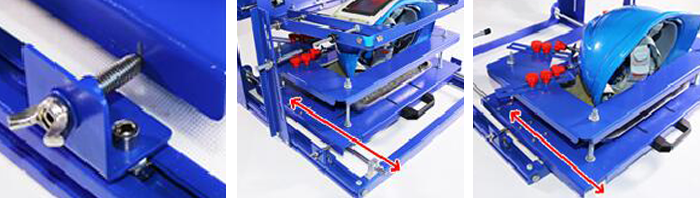

1. The bottom of the machine and the positioning platform can be moved back and forth, and a drag positioning device is set; Pull the platform out before putting the hat and push into the machine after the hat put into . Pulling out and pushing in can be accurately positioned by positioning ball screws on both sides of the platform.

2. The bottom of the stainless steel plate is equipped with a large area of magnetic plate, which can be directly adsorbed on the platform. You can push and pull the plate with a little force to move on the platform (screws and nuts can also be installed in the 8 long holes on the platform after positioning the plate to block the four sides of the plate for more stable positioning).

3. The main machine can be micro adjusted by manual knobs from left to right , up and down,up and down can move 170 mm; There is with a handle lock; Left and right can adjust 20mm,tighten and lock.

4.The machine adopts 1 mm stainless steel plate, the screen frame directly fixed on both sides of the frame beam; Screen plate can move 130mm front and rear; Screen plate installation beam can finished by adjusting the screen radian by hand screw; After adjusting to the same radian as the printing surface, lock the screws at both ends of the two beams.

5. The shaping resin has the characteristics of softening by heating and hardening by cooling; After heating to 60-100 degrees Celsius, the resin softens , place and press the bottom of the hat into the resin; After the resin cools and hardens, remove the hat, leave the outer contour shape of the hat insidethe resin, and complete the positioning of the bottom. This type of resin can be repeatedly heated and cooled (user can choose electric oven heating or high temperature hot air gun heating, also can use our company supporting SPE- arc screen special heating drying cabinet).

6. Four-point positioning of the lower part of the hat: the bottom positioning is completed. The

secondary four-point positioning and locking are adopted in the lower part of the hat to ensure that the hat will not move after it is placed in the positioning position of the printing machine.

7.The machine is equipped with two flexible stainless steel frames; Inner size is 100*190 mm (outer size is 130*200 mm); 100*240 mm (outer size 130*250 mm); Suitable for most kinds of hard hat printing patterns

8.All parts of the machine are advanced electrostatic spraying surface treatment, corrosion resistance, acid and alkali resistance, cleaning resistance, long - term use without rust.

Usage methods and procedures (for reference only)

1.Heating the shaping resin until soft and put it on the lower platform of the machine; And push into the machine to position;

2.Install the screen frame with blank mesh on the frame rack;

3.Cover the bottom of the hat with teflon cloth and press it into the shaping resin, adjust the radian of the screen frame and the printing arc of the hat, and basically determine the position of the printing pattern on the screen;

4.Adjust the positioning position of the hat, and push the soft resin beside to the four sides of the hat by hand to strengthen and fix;

5.After the resin is cooled, hold the four positioning handles of the second-floor platform against the four fixing points in the lower part of the hat and lock them;

6.Take out the hat, take out the teflon cloth, the hat positioning is completed (special note: after the positioning is completed, do not move the positioning resin tray).

7.Take down the screen plate and make plate according to the position of the pattern;

8.In order to prevent ink overflow, screen plate around can be affixed with sealing strip;

9.Install the finished screen plate and adjust it to the appropriate position ,Install the fixed screws on both sides of the screen plate to lock and print.

Configured with relevant tools and materials

1. 1 piece 8 cm scoop coater

2. One for each of the two stainless steel cambered screen plates

3. Positioning resin 2.4 kg

4. 1 piece 8cm metal scraper (including rubber strip)

5. 30 *30 cm teflon cloth 1 sheet

6. 1 roll screen plate edge sealing tape
